**Product Description**

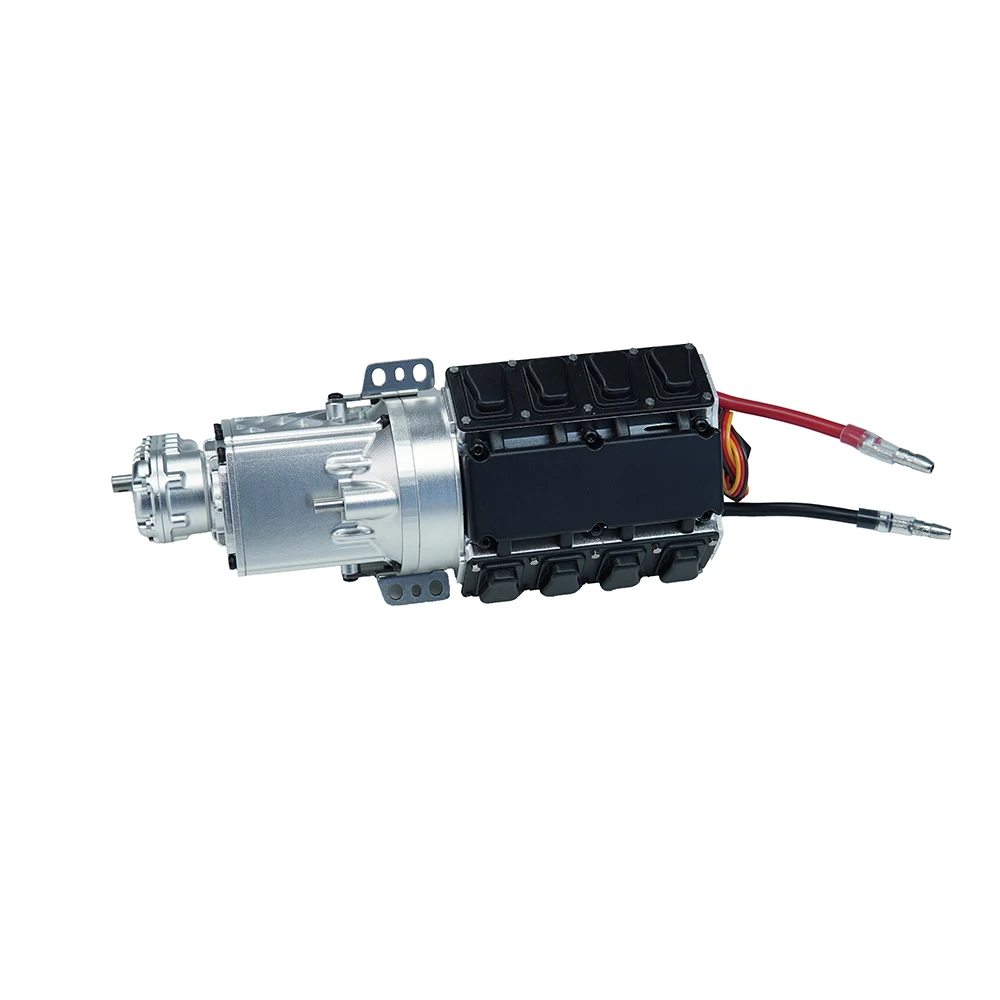

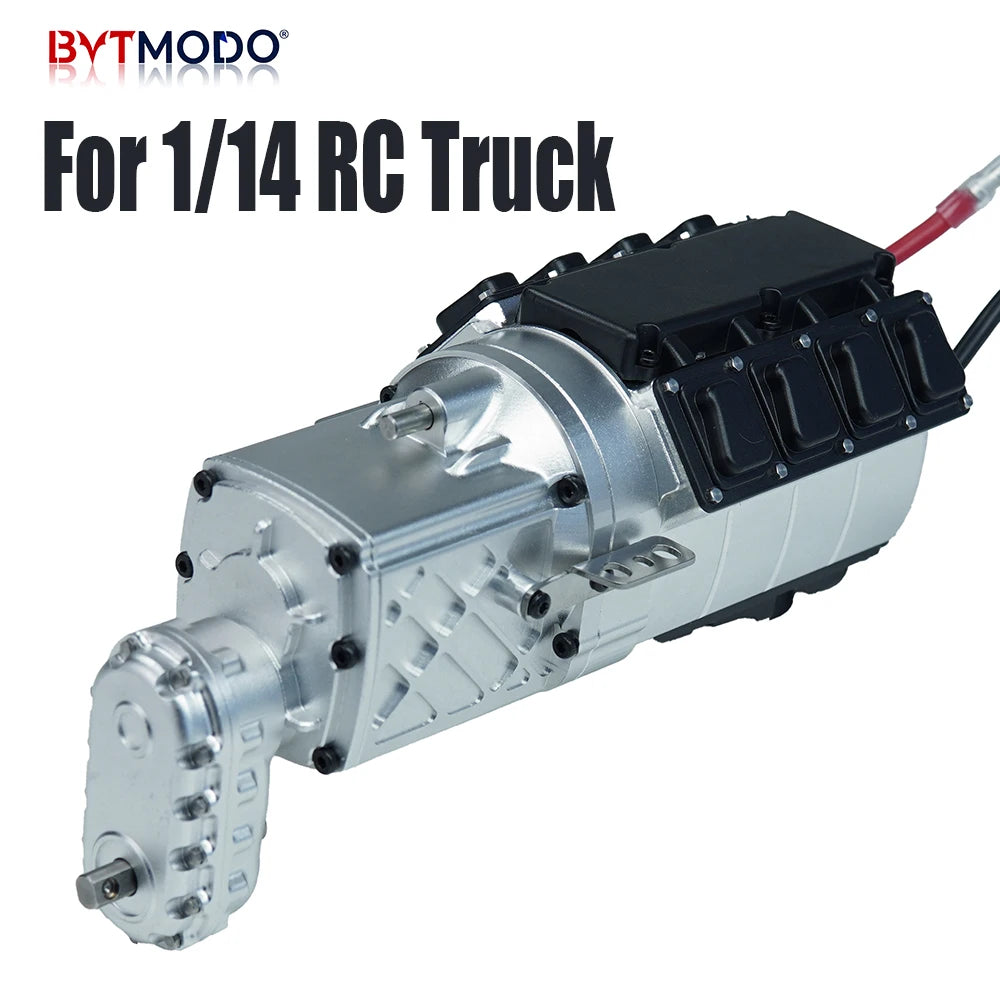

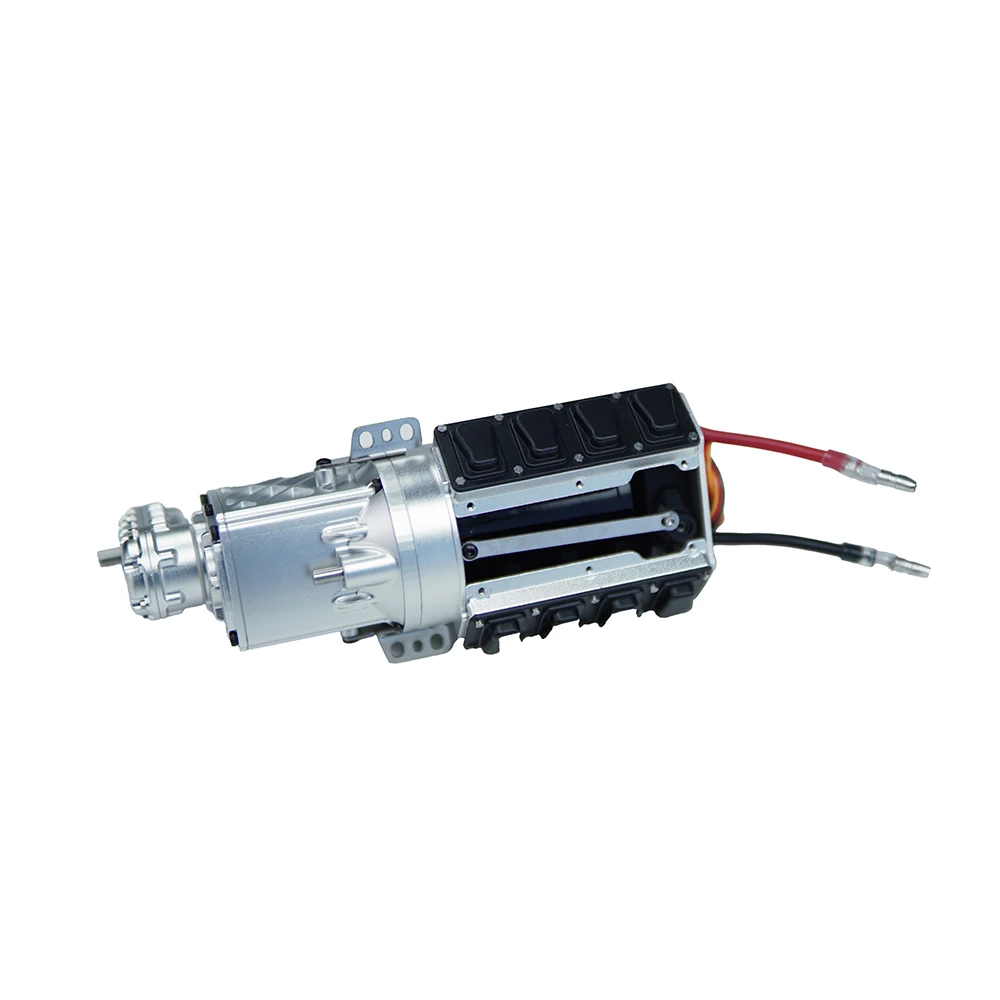

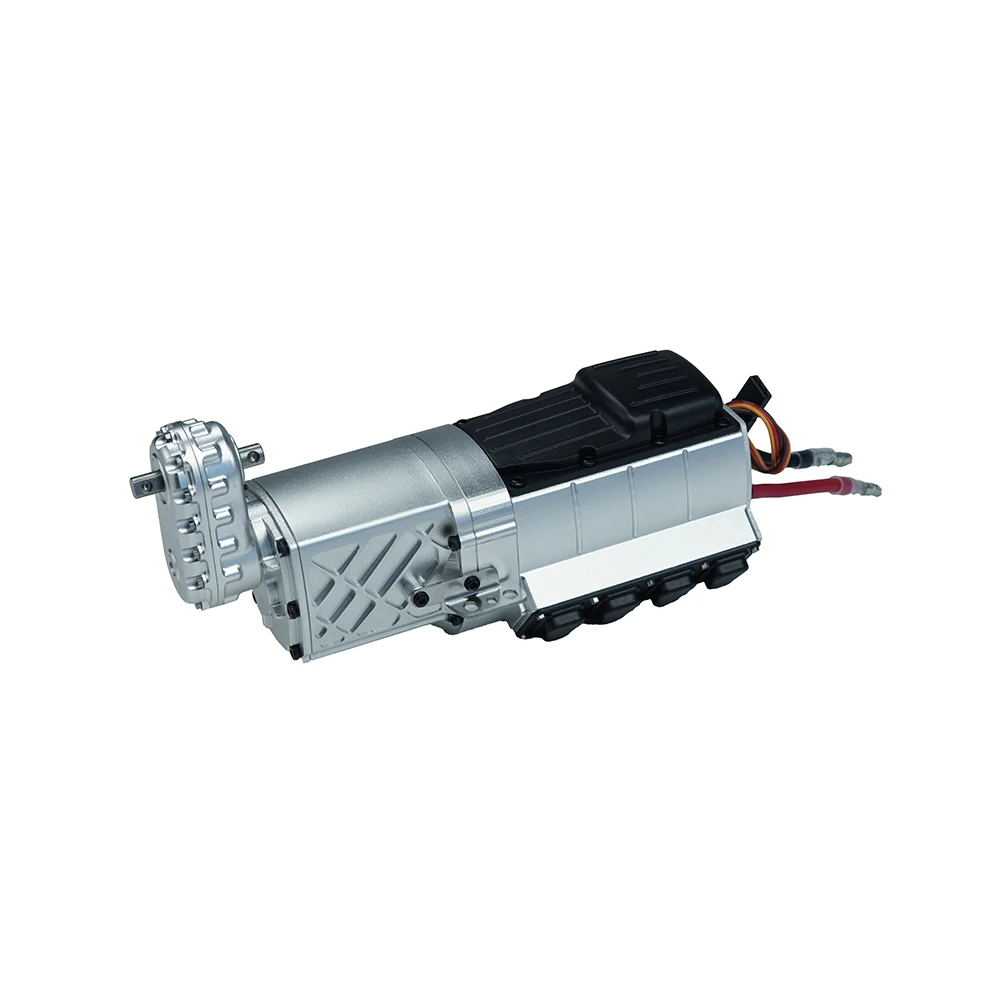

Drop a complete two-speed driveline into your 1/14 truck - with the shift servo already built in. This set combines a 540 brushed motor, a two-speed gearbox with integrated transfer case and an internal shifting servo, so there is no extra servo to buy and no linkage to set up: plug the servo lead into your receiver and change gears as you drive. Gear ratios are 1/15 and 1/28. The silver gearbox housing is CNC-machined aluminum alloy, and both the motor and the shift servo can be removed and replaced. Runs on 7.4V batteries only.

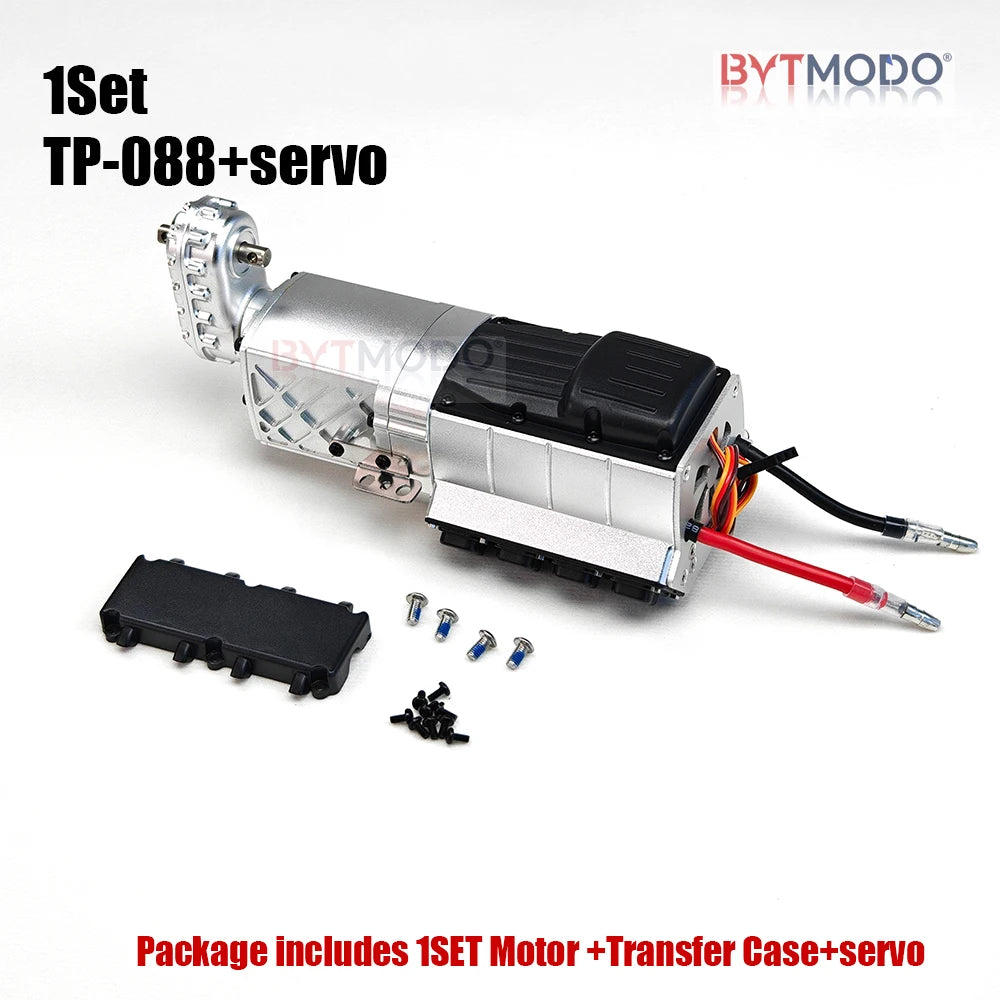

**What's Included**

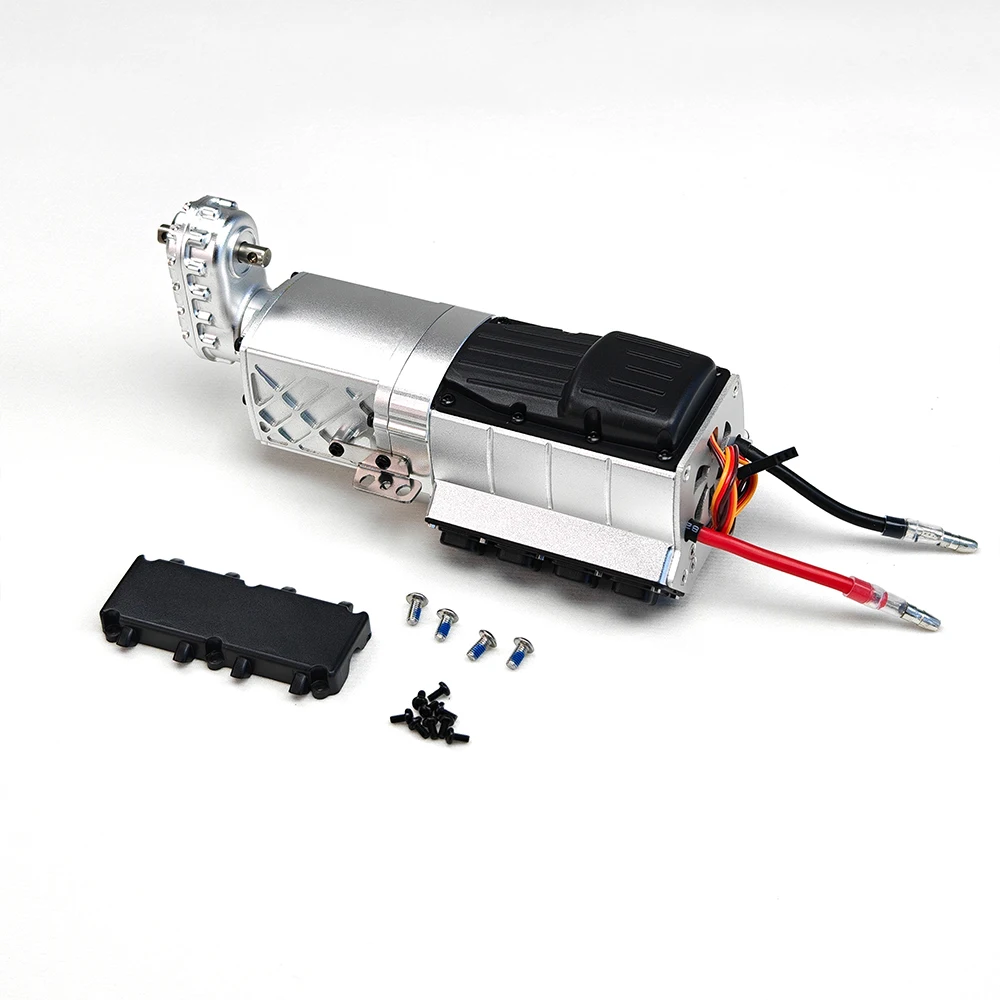

1 x 540 brushed motor with two-speed gearbox and integrated transfer case (built-in shift servo)
1 x servo cover / mounting plate
1 x mounting hardware set (screws, connectors)
Note: ESC, battery, receiver and transmitter are NOT included.

**Key Features**

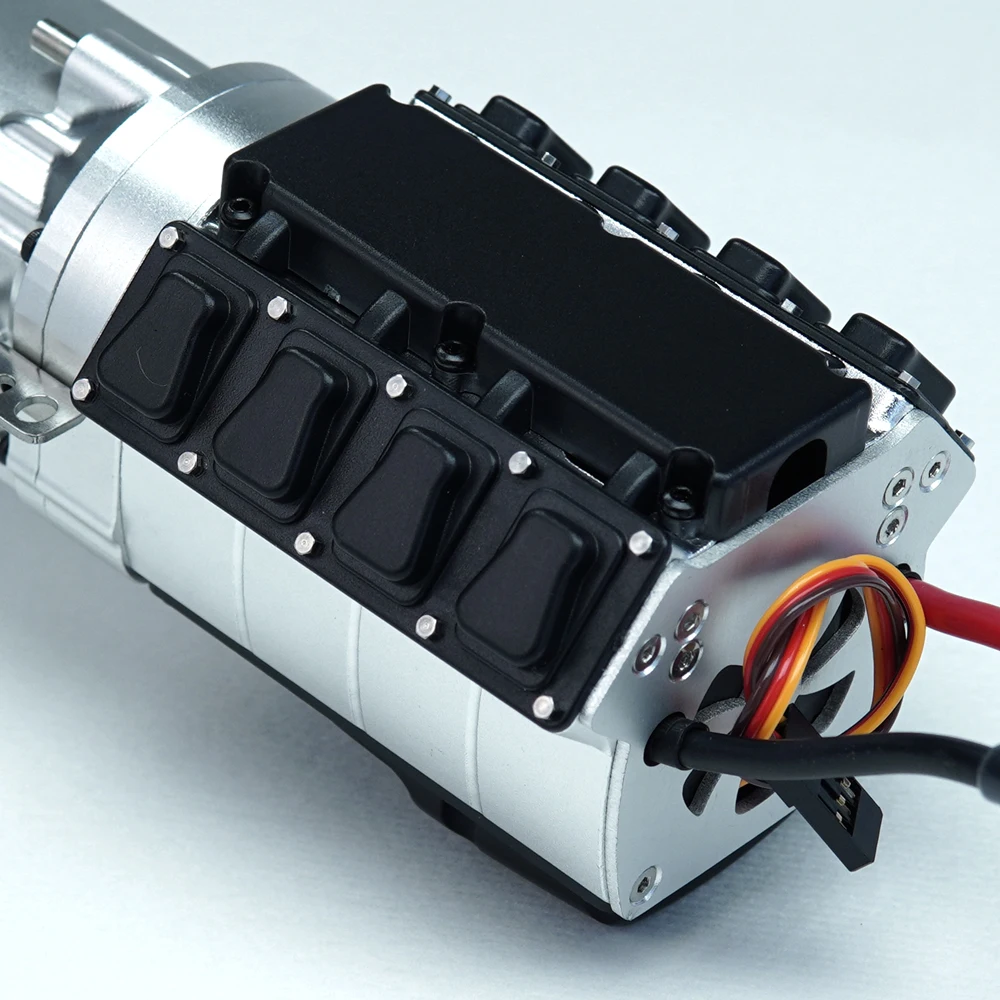

● Built-in shift servo - no extra servo to buy, no shift linkage to adjust; the servo lead plugs straight into your receiver
● Plug and play - comes assembled and ready to run, just add your ESC and 7.4V battery

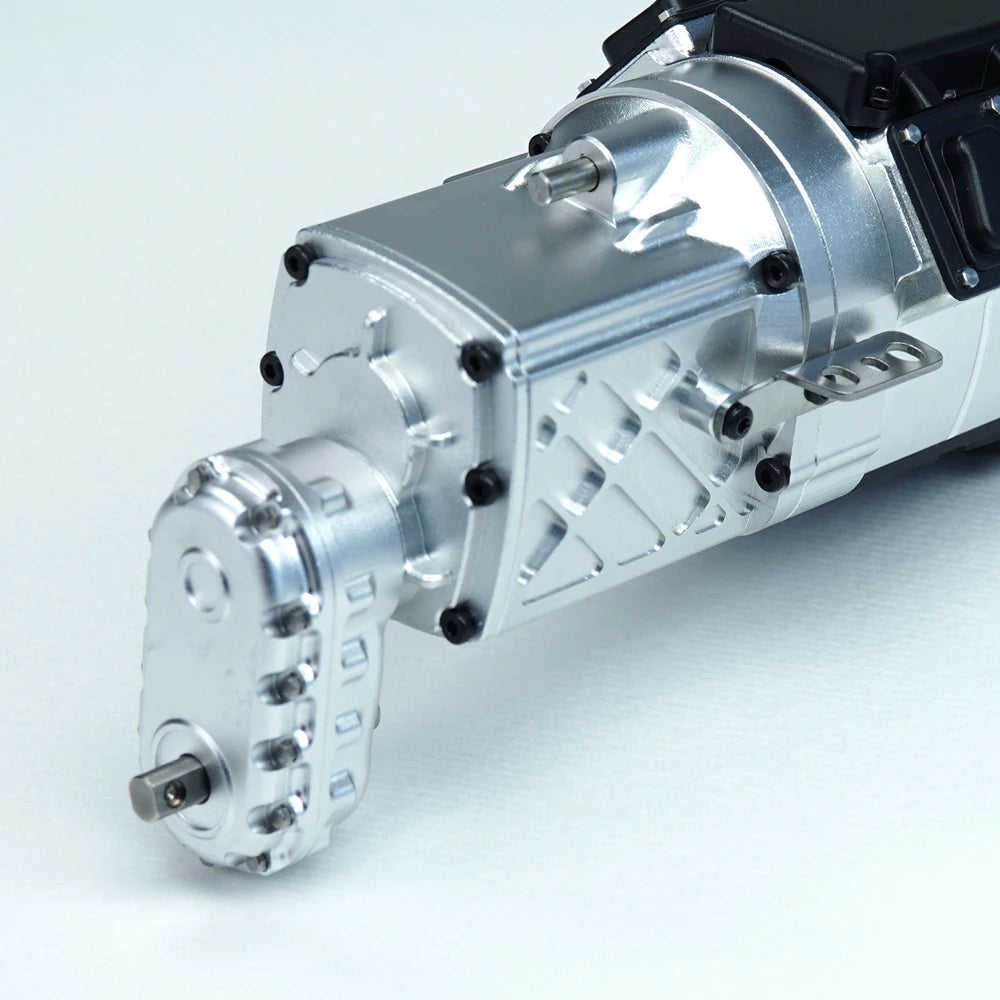

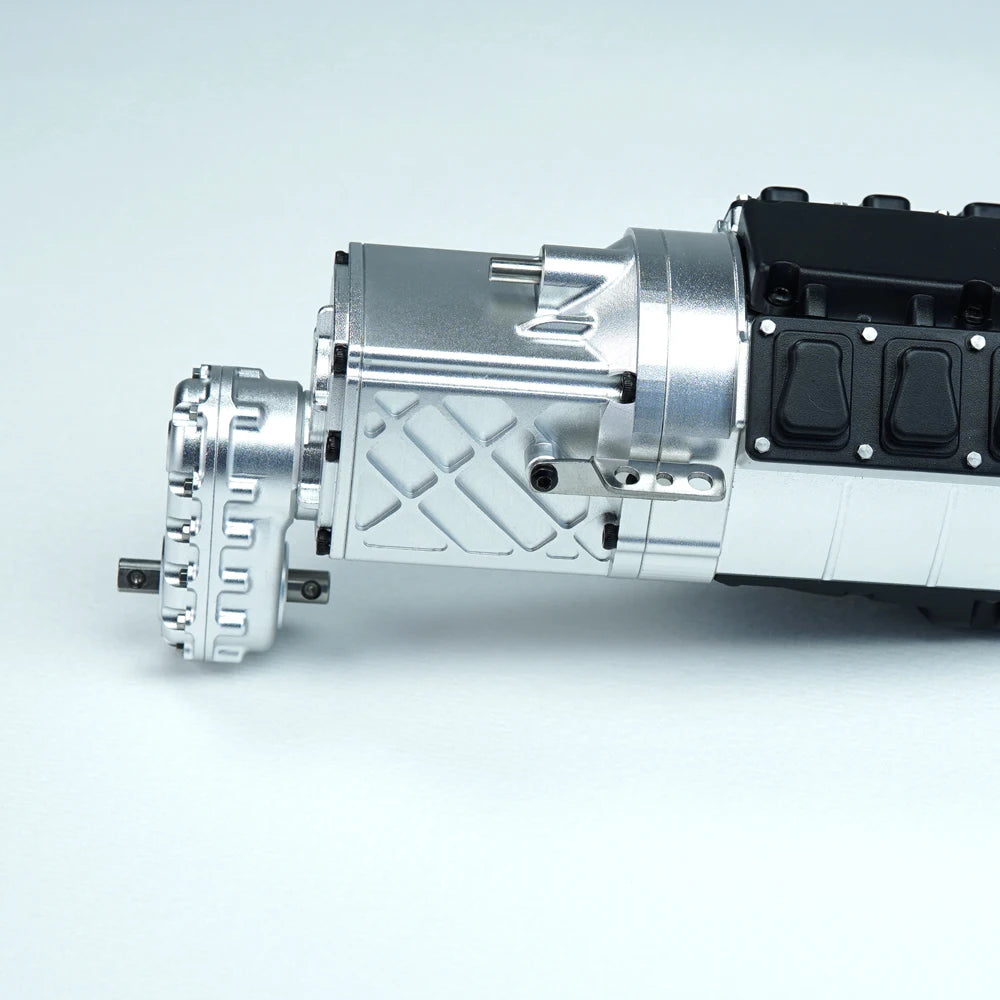

● Two-speed transmission with integrated transfer case - gear ratios 1/15 and 1/28, switch between them as you drive
● All-metal gears - built to take the load of a heavy 1/14 truck
● CNC-machined aluminum housing - rigid alloy case with a clean silver finish

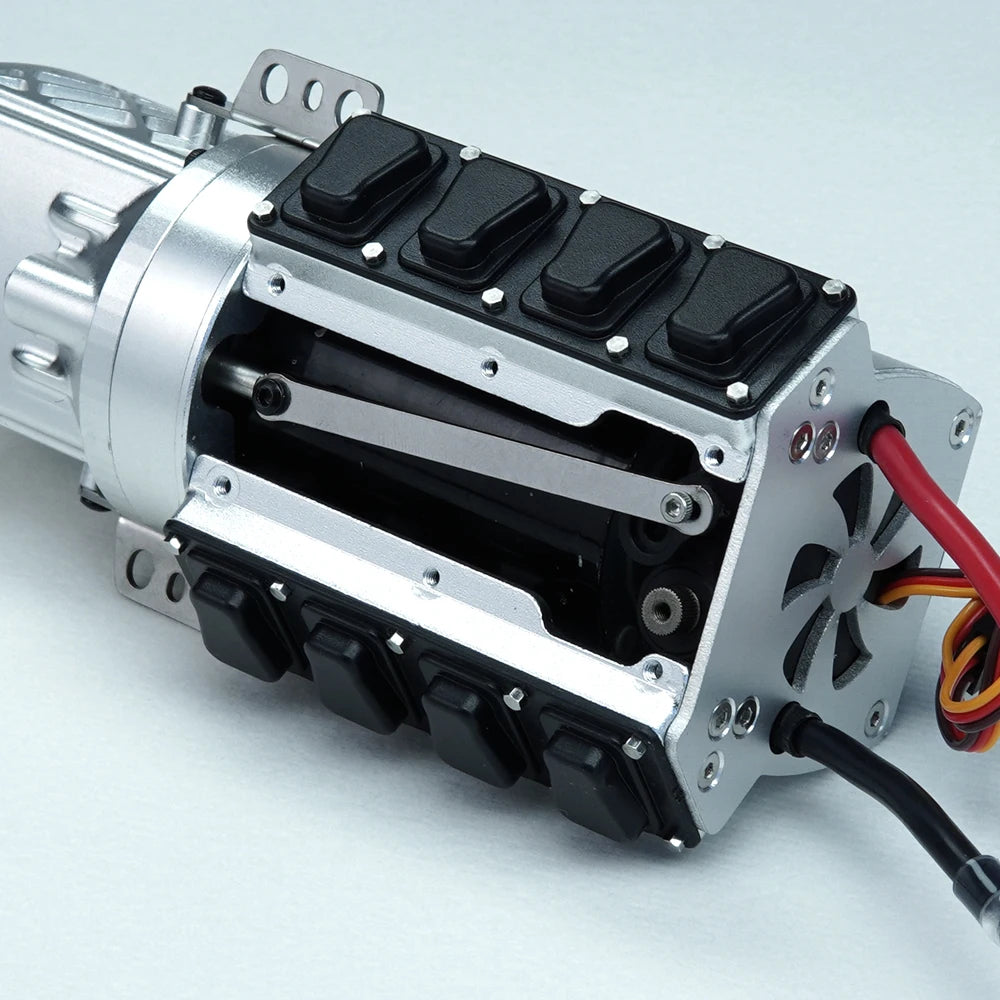

● Serviceable design - both the motor and the built-in shift servo can be removed and replaced
● 540 brushed motor included - pre-wired and ready to run
● Output shaft 5mm - pairs with standard 1/14 drive shafts with a 5mm bore, including the telescoping drive shafts sold in our store (choose by shaft length)
● 7.4V operation - simple, proven power for scale trucks

**Compatibility**

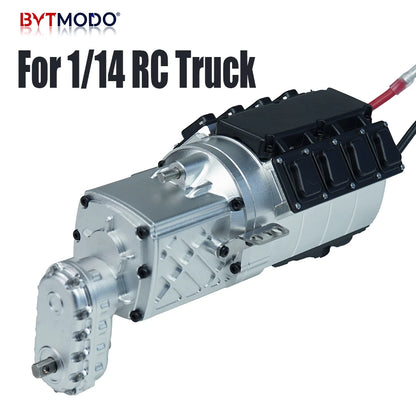

Designed for 1/14 scale RC trucks: Tamiya tractor trucks, dump trucks, tippers, cargo trucks and similar chassis.
Also suitable for the 1/14 modified trucks available on the market, including dump trucks, tippers and heavy haulers - two gear ratios let you pick the right range for hauling or lifting a loaded bed.
Output shaft: 5mm, so it pairs with standard 1/14 drive shafts with a 5mm bore, including the telescoping drive shafts sold in our store (choose by shaft length).
Requires an ESC and a 7.4V battery to run - neither is included.

**Specifications**
Model: TP-088
Scale: 1/14
Motor: 540 brushed, pre-wired with connectors (removable)
Transmission: two-speed gearbox with integrated transfer case
Housing: aluminum alloy, CNC machined
Gears: all-metal
Gear ratio: 1st gear 1/15, 2nd gear 1/28
Output shaft: 5mm
Shifting: built-in servo (servo lead with connector included)
Operating voltage: 7.4V only Quantity: 1 set per package

**Note**
Use a 7.4V battery only - higher voltage will damage the motor.
The shifting servo is built into the gearbox and comes pre-installed; no extra servo is required.
Both the motor and the shift servo are removable for maintenance or replacement.
ESC, battery, receiver and transmitter are NOT included.
After connecting, check that the shift channel moves the gearbox through both gears and set your transmitter endpoint so the servo is not strained at either end.

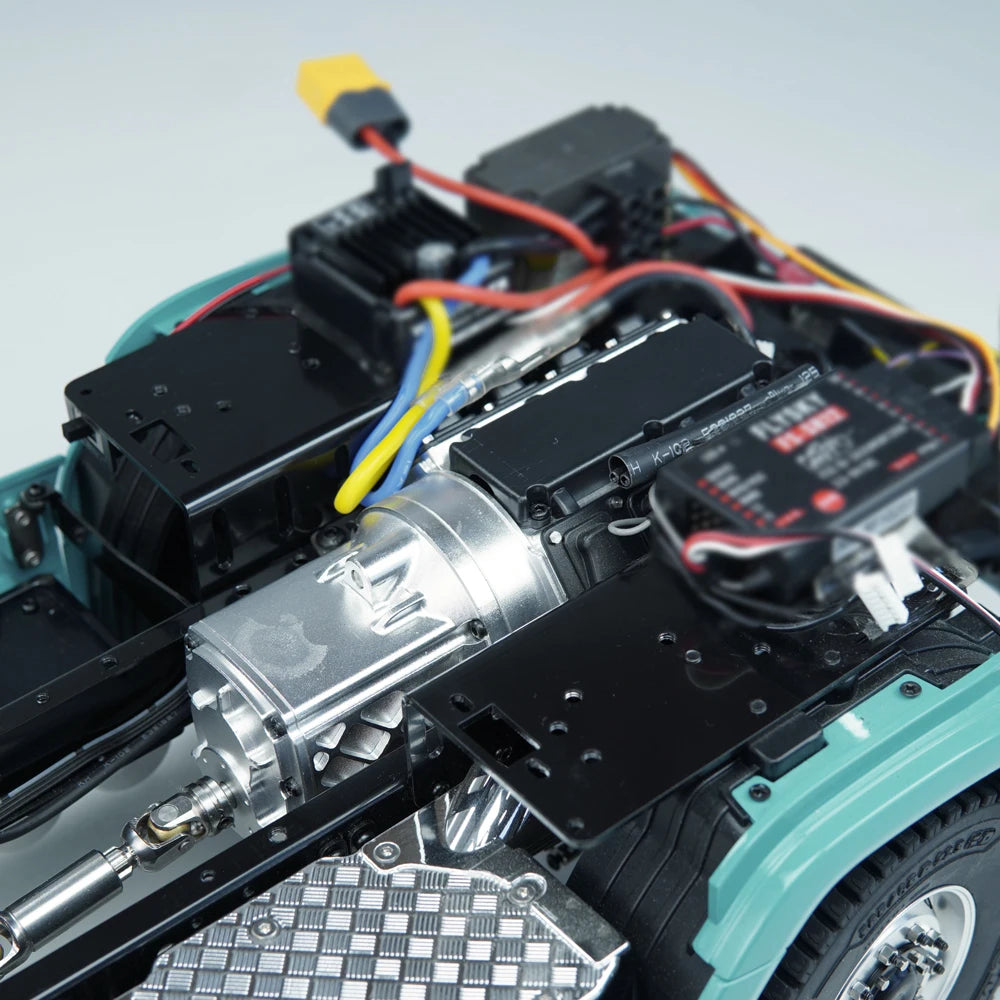

Truck and other parts shown in photos are for display only and are not included.
This is not an official Tamiya product.
