Product Description

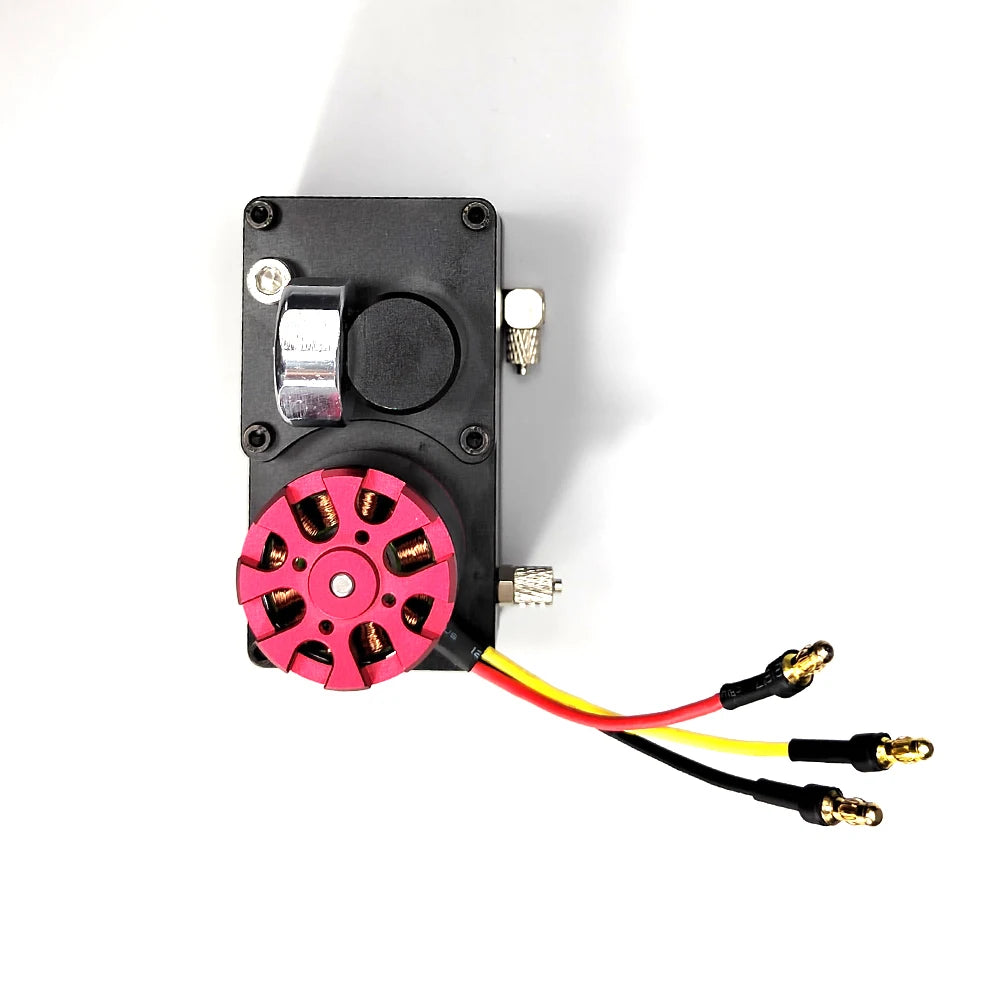

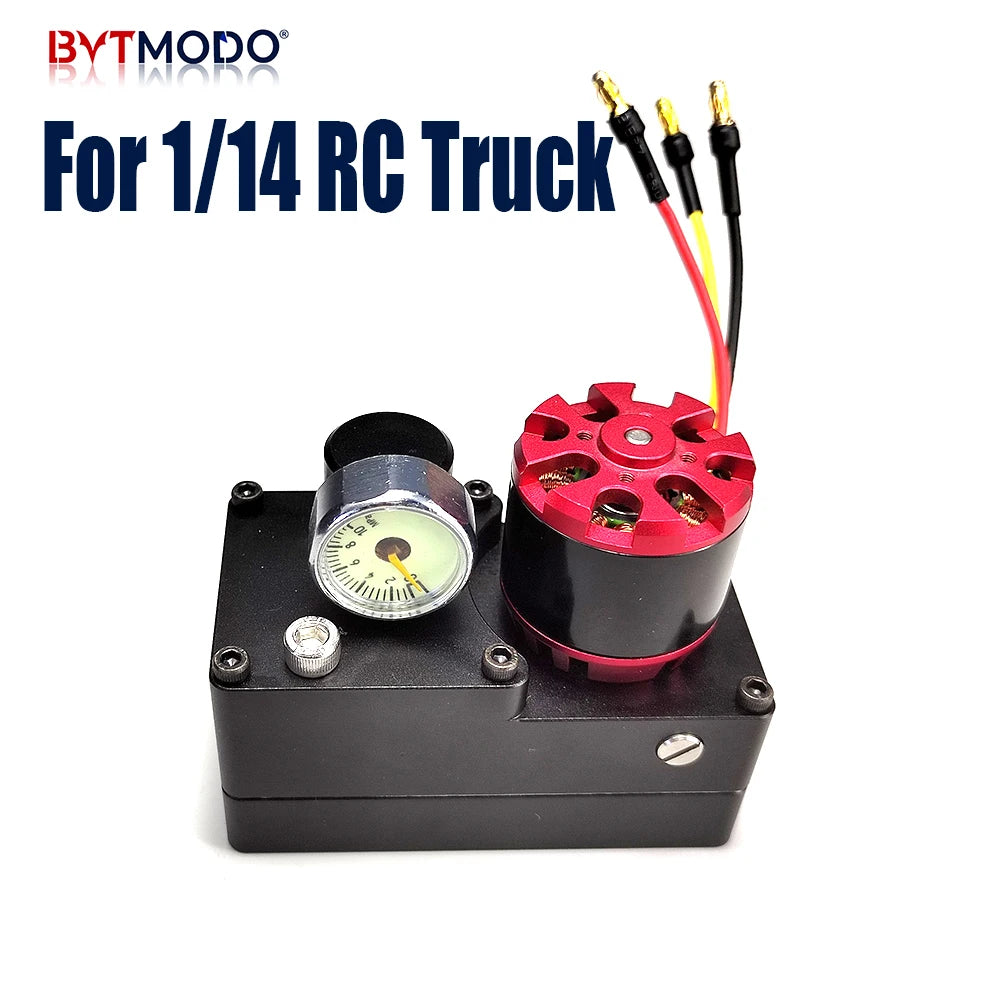

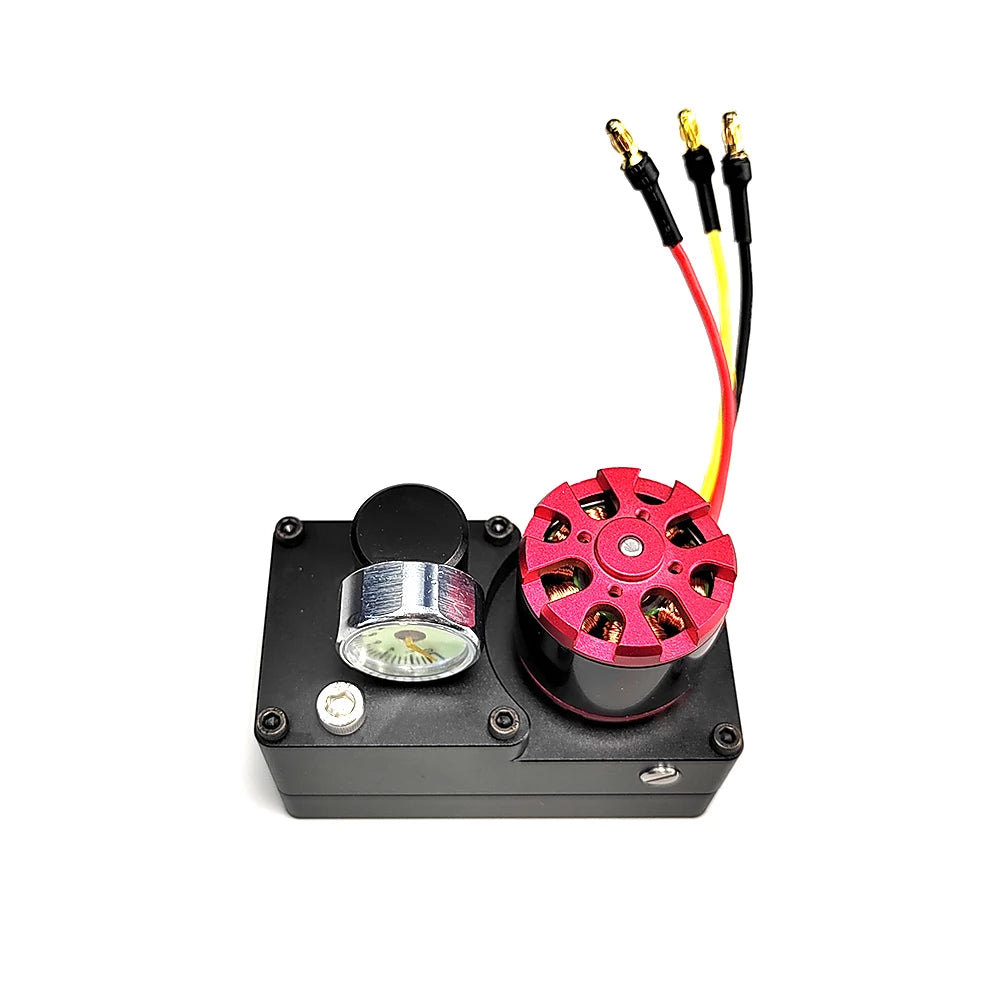

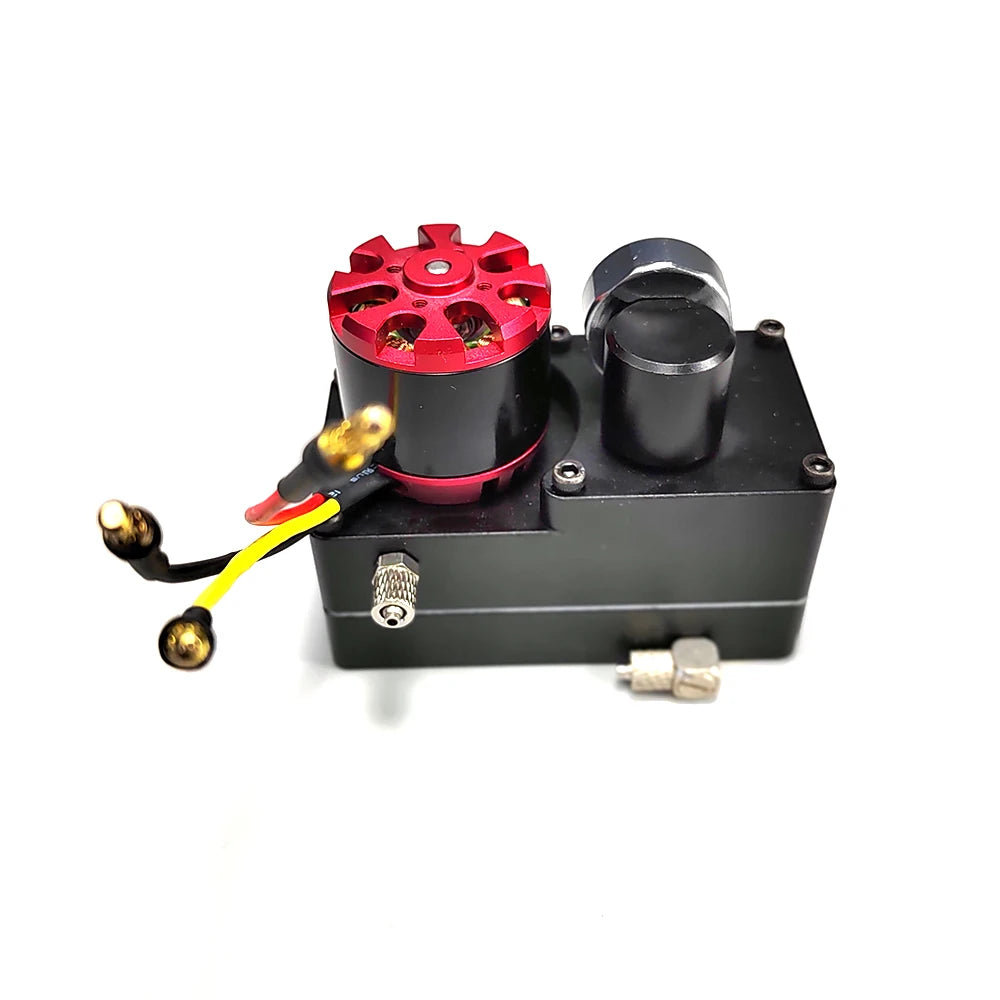

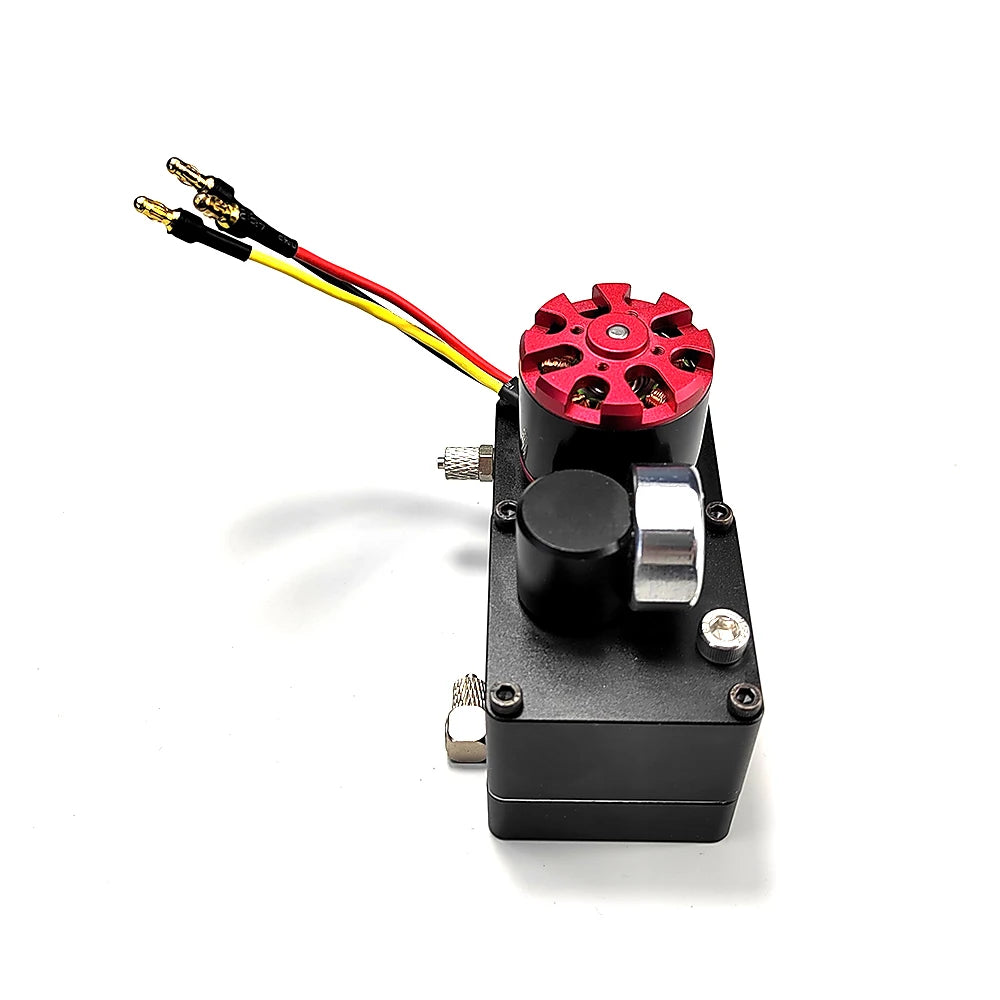

A complete hydraulic power unit for 1/14 scale construction models - the brushless motor, the gear pump, the pressure valve, the gauge and the oil tank all sit in one aluminium alloy body. The tank is built in, so there is no separate tank to buy and no room to find for it on the chassis.
It is built for the machines that work hardest, and above all for 1/14 hydraulic excavators such as the R926 and other scale diggers with a hydraulic arm: a digger drives a boom, an arm and a bucket, so it needs real pressure and real flow, not just enough to lift one tipper ram.
The circuit needs two runs of hose - one out to the cylinder and one back - and the set gives you a single 50cm length to cut into both, so you can trim each run to the length your model needs.
With the tank built in, no extra parts in the oil path and the unit sealed as one assembly, there is nothing to weep or drip however long you run it.
Pressure is adjustable from 0 to 10 MPa, and 6 MPa is the range we recommend for day-to-day use; the built-in gauge on the top plate lets you set the pressure and read it at a glance, without adding a separate gauge to the model.
The 3536-300KV brushless outrunner drives a steel gear pump at roughly 400 ml/min, and the pressure valve stem is 304 stainless steel.
It runs on a 2S or 3S LiPo pack - the batteries most 1/14 builds already carry. It needs an external brushless ESC to run, 40A or above recommended, and it takes ISO VG46 hydraulic oil.

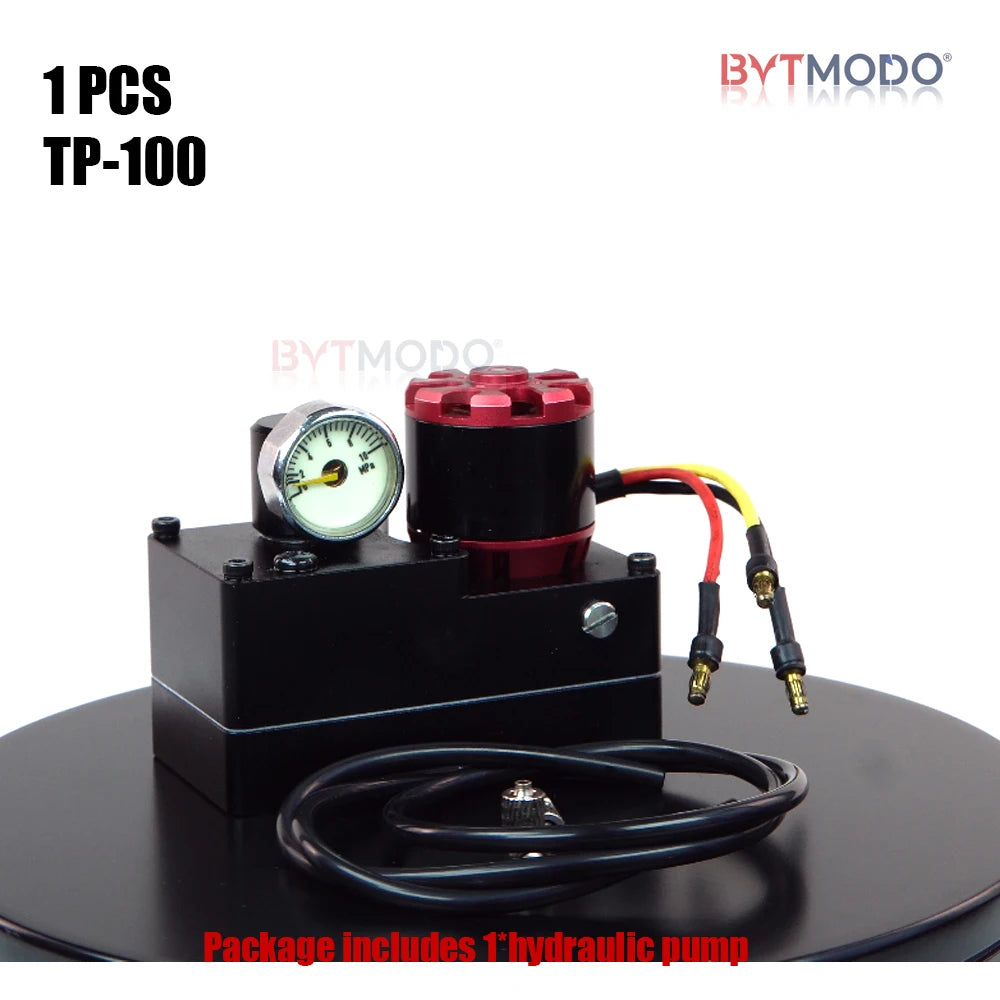

What's Included
1 x brushless integrated hydraulic pump (3536-300KV brushless motor, aluminium alloy body, built-in pressure valve, gauge and oil tank)
1 x 50cm oil hose (one length - cut it into a supply run and a return run)
1 x 5mm angled nozzle
1 x 5mm straight nozzle
Note: the brushless ESC, the hydraulic oil, the hydraulic cylinder and the models shown in the photos are for display only and are NOT included. No separate oil tank is needed.

Key Features
● All-in-one unit with the tank built in - motor, gear pump, pressure valve, gauge and oil tank in a single aluminium alloy body, so there is no separate tank to buy and no space to find for it, and the unit is ready to mount straight out of the box
● Sealed design, built to stay oil-tight - the tank is built in, there is no extra part in the oil path, and the unit is sealed as one assembly, so the oil stays where it belongs run after run
● Hose included, cut to fit - the set gives you 50cm of oil hose, enough to cut both runs: one supply line out to the cylinder and one return line back
● Compact footprint - the built-in tank and the one-body layout take up far less room than a separate pump, tank and valve, so it drops into tight engine bays and excavator housings
● Adjustable pressure, 0-10 MPa - set the working pressure to suit your cylinder, and stay within 6 MPa for everyday use
● Built-in pressure gauge - read the pressure on the top plate instead of fitting a second gauge
● 2S or 3S LiPo power - runs on the packs a 1/14 truck or excavator already uses, so no extra battery to buy
● 3536-300KV brushless outrunner - drives the steel gear pump at around 400 ml/min and stays cool through long runs, with no brushes to wear out
● Built for multi-cylinder machines - the flow and pressure headroom a 1/14 excavator needs to work a boom, an arm and a bucket, or a loader to fill a full bucket
● Steel gear pump and a 304 stainless steel valve stem - hard-wearing internals that hold their pressure setting
● Black anodised aluminium body - rigid, light, and it sits tidily inside a 1/14 truck chassis or an excavator housing

Compatibility
For 1/14 scale RC hydraulic models - the heavy-duty builds that need a strong pump:
1/14 hydraulic excavators - the R926 and other scale diggers with a hydraulic arm, driving boom, arm and bucket cylinders
Wheel loaders, backhoe loaders and skid steers - boom and bucket cylinders
Bulldozers - blade and ripper cylinders
Dump trucks, tippers and heavy haulers, including trucks built on Tamiya 1/14 chassis and similar third-party builds
Any other 1/14 build that runs one or more hydraulic cylinders Your model needs hydraulic cylinders on the boom and arm for this pump to work.
The oil tank is built in: all you add is the hose runs to your cylinders and the hydraulic oil. Runs on 2S-3S LiPo. Requires an external brushless ESC (not included), 40A or above recommended, and a spare channel on your receiver to switch the pump.
Use ISO VG46 hydraulic oil. Check the pressure rating of your hose and cylinder before raising the pressure. The ESC, oil and the vehicles shown in the photos are not included.

Specifications
Model: TP-100
Scale: 1/14
Application: 1/14 hydraulic models - 1/14 RC excavators such as the R926 and other diggers with a hydraulic arm, plus loaders, dozers and dump trucks
Type: brushless integrated hydraulic pump (motor, gear pump, pressure valve, gauge and oil tank in one body)
Motor: 3536-300KV brushless outrunner (DC)
Motor wiring: 3 leads with gold-plated bullet connectors (connects to a brushless ESC)
ESC: external brushless ESC required, 40A or above recommended, 2S-3S compatible (not included)
Operating voltage: 2S-3S LiPo (7.4-11.1V)
Gear pump: steel Pressure valve stem: 304 stainless steel
Pressure range: 0-10 MPa, 6 MPa recommended maximum working pressure
Flow rate: approx. 400 ml/min
Oil tank: built into the pump body - no separate tank required
Oil tank / body material: aluminium alloy
Hydraulic oil: ISO VG46 (not included)
Nozzles: 5mm angled + 5mm straight Hose: 1 x 50 cm oil hose - cut it into two runs, one supply and one return

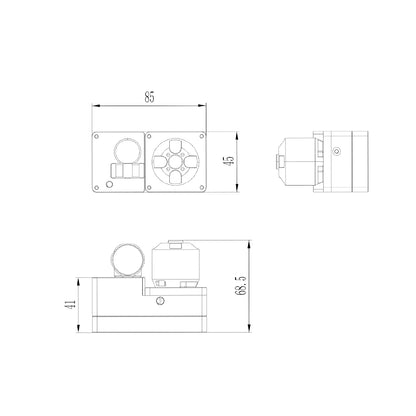

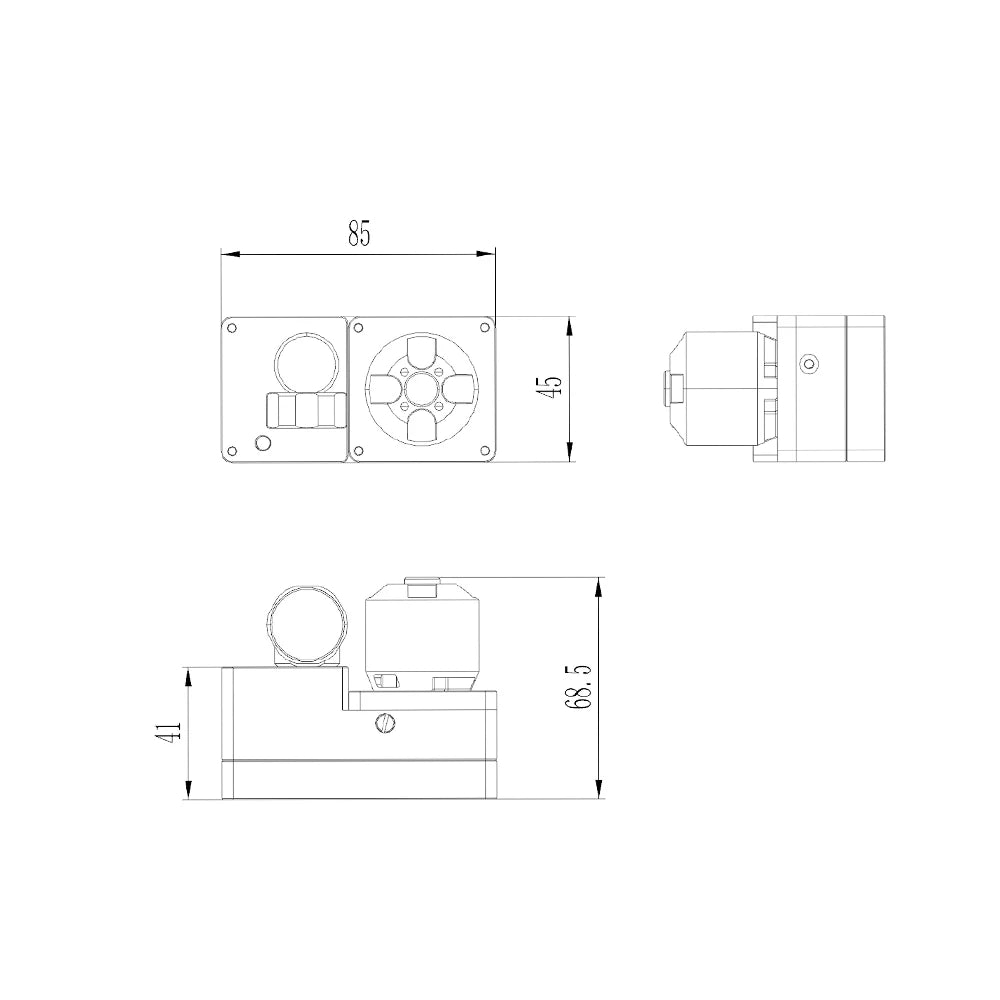

Dimensions: 85 x 45 x 70 mm (L x W x H)
Quantity: 1 set

Note
This is a hydraulic upgrade part for 1/14 RC models, not a full-size hydraulic pump.
The pump must be driven by a brushless ESC - it cannot be plugged straight into a receiver.
Use a 40A or higher brushless ESC. Run it on a 2S or 3S LiPo pack; do not exceed 3S (11.1V).
The oil tank is built into the pump body; no separate tank has to be fitted.
The oil hose is supplied as one 50cm length: cut it into two runs - one from the pump out to the cylinder, one back - to complete the circuit. Cut each run to the length your model needs.
Set the pressure within 10 MPa and keep everyday working pressure within 6 MPa.
Check that your hose and cylinder are rated for the pressure you set.
Use ISO VG46 hydraulic oil; do not run the pump without oil.
The ESC, hydraulic oil, hydraulic cylinder and the vehicles shown in the photos are for display only and are NOT included.
This is not an official Tamiya, Mercedes-Benz, Scania, Volvo, MAN or IVECO product, and it is not affiliated with any excavator manufacturer.
All brand and model names are used for a true compatibility description only.
